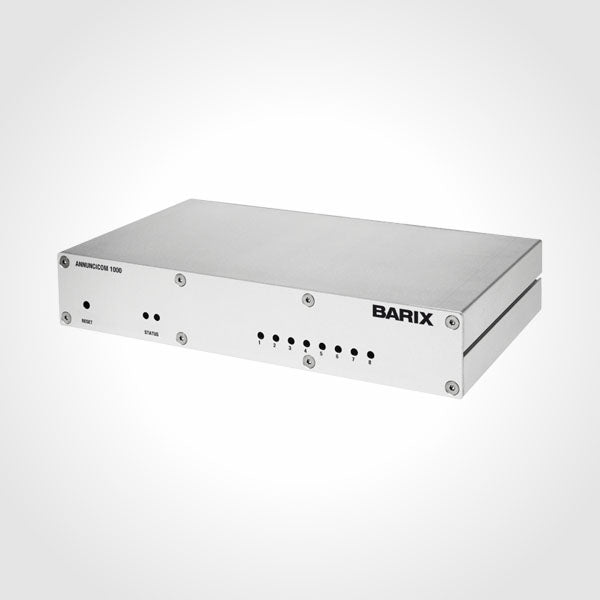

ANNUNCICOM 1000 (International Package 100-240V)

The Barix Annuncicom 1000 is a versatile professional device for intercom and public address applications featuring 8 supervised contact closure inputs, 9 relay outputs and balanced stereo audio interfaces; including support for professional microphones via its audio inputs. In addition, it features duplicated and therefore redundant power and network inputs; making the Annuncicom 1000 ideal for applications where high reliability is required.

Applications

• Generic applications for audio signal routing and “audio PLC” systems
• Paging and audio signal transmission systems
• Automatic ad serving systems
• Public address systems, emergency calls, alarms and paging systems
• Monitoring and control in public buildings, airports, factories and shopping malls

Specific characteristics

All the main features of the Annuncicom hardware plus:

• Dual Ethernet ports for high reliability applications
• Dual balanced 0dB line level audio inputs
• Microphone input with configurable sensitivity and 12 V phantom power.
• Dual balanced 0dB line level audio outputs
• 8 supervised contact closure inputs
• 8 relay outputs of 24 V and 0.5 A, with an independent protection relay
• Dual supervised power inputs, 18 to 56 V
• Integrated temperature sensor for monitoring device status
